Woodmaxx · ReviewUpdated 2026-08-05
Woodmaxx FM-62 review
The FM-62 is the simpler 55″ Woodmaxx flail for compact tractors that do not need hydraulic side shift, and its verified 641 lb machine weight matters for lift checks.
Pros and cons
Pros
- Sweet-spot width for many compact tractors
- Heavy Q235 steel deck and NSK bearings
- Slip clutch PTO shaft included
Cons
- Fixed offset from PTO. Fence-line and orchard reach are limited; this deck does not tilt
- Heavier than budget imports in the same width class
01What the FM-62 actually is

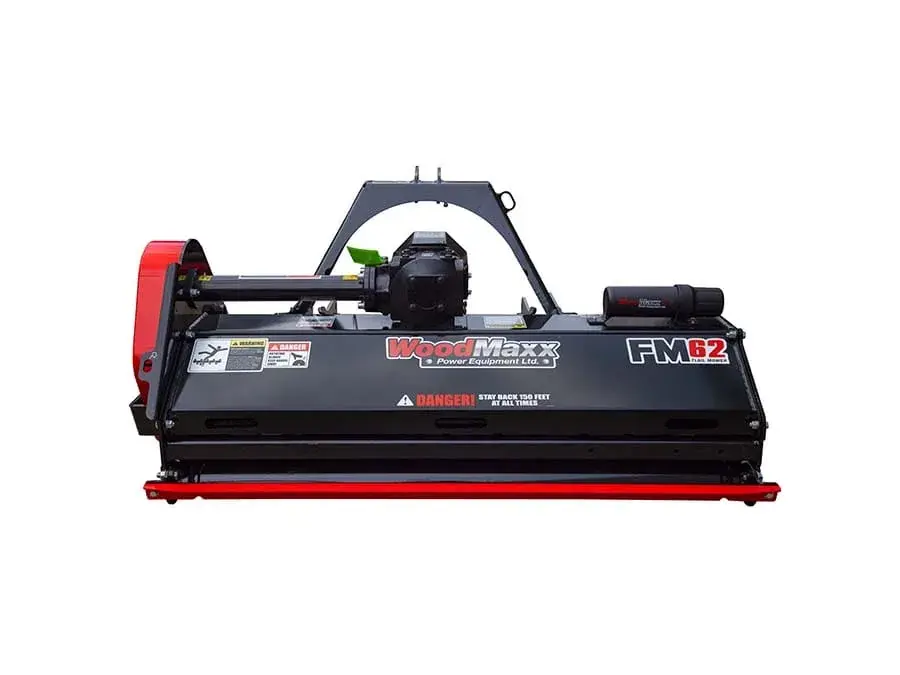

The FM-62 is a fixed-offset Category 1 flail with a 55″ cutting width and 65″ overall width. Woodmaxx publishes a 20–45 HP tractor range, 641 lb machine weight, and 800 lb shipping weight.
This model keeps the core 5″ rotor, 3× BX39 belt drive, automatic tensioner, and hammer/Y-blade choice of the 55″ FM platform, but it omits the hydraulic side-shift cylinder and rear-remote requirement.
02Fixed offset vs hydraulic side shift
From the PTO centerline, Woodmaxx lists fixed reach of about 36″ right and 29″ left. That offset helps cover a tire track and trim edges, but it does not replace the FM-62H's ability to slide around trees and fences from the seat.
If your mowing is mostly open pasture, trails, or brush lanes, the simpler layout is a strength. If edge work is the job, compare the hydraulic H model before buying. The mid-duty value foil here is MechMaxx NAM60 (60″, 1.8 lb hammers). EFS60 is the light-duty 60″ grass deck, not the same class.
03Power, cut quality, and blade choice
Owner themes include 25 HP compact tractors running the mower successfully when conditions and ground speed are reasonable. Wet grass performance and clean cut quality also come up positively in owner feedback, but tall, dense growth still rewards patience.
Owner theme: rear gate. Closing the rear panel is described as finer mulch; opening it when heavy cutting packs material under the deck is the tradeoff that shows up in FM-62 ownership notes.
The blade decision is the same as the H version: 18 hammers at roughly 1.85 lb each for brush and rougher work, or 36 Y-blades for a cleaner grass finish.
04Build and support notes
Verified manufacturer specs include a 5″ rotor at about 2160 RPM, 14.8125″ blade swing, 95 mph tip speed, 3/4″–3.75″ cutting height, and 3× BX39 Gates belts with an automatic tensioner.
Owner themes mention hammer hardware loosening after use and Woodmaxx support helping with shipping-damage issues. Plan an early fastener inspection and document freight condition at delivery.
What's in the box
- FM-62 flail mower deck (hammer or Y-blade configuration as ordered)
- Category 1 three-point hitch mounting
- PTO driveline
- Fixed-offset mower frame
- Rear gauge roller
- 3× BX39 Gates belt drive with automatic tensioner
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Front ballast if your compact needs it for a ~641 lb deck
- Hydraulic side-shift cylinder or rear remote connection
- Alternate blade style beyond the configuration ordered
- No rear remotes are required for the non-H FM-62.
- Use 641 lb machine weight and 800 lb shipping weight for lift and delivery checks.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- Woodmaxx
- Model
- FM-62
- Cutting width
- 55″
- Overall width
- 65″
- PTO horsepower
- 20–45 HP
- Min HP per foot of cut
- 4.36
- Hitch
- Category 1
- Offset
- Fixed offset
- Side-shift detail
- Fixed offset from PTO center: extends 36″ right / 29″ left. Not hydraulic.
- Rear remotes required
- 0
- Machine weight
- 641 lb
- Shipping weight
- 800 lb
- Cutting height
- ¾″–3¾″
- Rotor diameter
- 5″
- Rotor RPM
- 2,160 RPM
- Blade swing diameter
- 14.8125″
- Blade tip speed
- 95 mph
- Hammer blades
- 18 × 1.85 lb (33.3 lb total)
- Y-blades
- 36
- Blade options
- hammer / y-blade
- Belts
- 3 × BX39 (Gates Truflex)
- Drive notes
- 3× BX39 Gates belts, automatic belt tensioner, reverse-rotating 5″ rotor, oil-bath gearbox, NSK bearings
- Price (list)
- $3,630
- Warranty
- 2 years parts
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 20–45 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 641 lb (shipping ~800 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- No rear remotes required for cutting. A standard 540 RPM PTO and matching hitch is enough.
- Ballast the front end on steep or soft ground, especially with wider decks (55″).
Who should buy the FM-62, and who should skip it
Compact owners in the 20–45 HP range who want the FM-62H deck class without rear remotes, hydraulic plumbing, or the side-shift price premium.
You want the 55″ Woodmaxx deck without hydraulics
No rear remotes are required, and the fixed-offset layout keeps the machine simpler than the FM-62H.
Your compact can lift a 641 lb machine
The old catalog weight was too high; use 641 lb machine weight and 800 lb shipping weight for fit checks.
You can choose blades by primary job
Hammers fit brush and rough lanes; Y-blades fit lawn, pasture, and orchard finish work.
You need seat-controlled side shift
Buy the FM-62H if fences, trees, and pond edges justify a rear remote and hydraulic cylinder.
Your tractor is at the low end with limited lift
A lighter FM-54 may be a better match for subcompact three-point capacity and ballast.
You need maximum width per pass
The FM-78 class covers more ground if your tractor has the horsepower, lift, and turning room.
Alternatives to consider
Accessories worth planning for
Front ballast / suitcase weightsOptional
Helpful on lighter compact tractors so a ~641 lb mower does not make steering light.
Replacement hammer or Y-blade kitOptional
Wear parts; choose the blade style that matches the ordered configuration.
Spare hammer hardwareOptional
Owner themes mention hammer fasteners loosening; keep replacement nuts and bolts on hand.
Spare BX39 belt setOptional
The FM-62 uses three BX39 belts; a spare matched set reduces downtime.
Hammers vs Y-blades
Hammer blades
18 hammers · ~1.85 lb each
Best for: Brush, briars, saplings, and rough-field cleanup
Finish: Mulched / utility finish
Owner themes include hammers loosening after work; inspect hardware after the first few hours and after heavy brush.
Y-blades
36 knives
Best for: Wet grass, pasture finish, and maintained acreage
Finish: Cleaner finish than hammers in grass
Better choice when appearance matters more than woody-material tolerance.
Woodmaxx sells hammer and Y-blade versions as order-time configurations. Choose for the job you do most often.
What owners say about the FM-62
Themes paraphrased from Woodmaxx-published owner reviews and public compact-tractor posts about the FM-62 (retrieved 2026-08-07). Not a scientific sample.
- Cut quality vs rotary cutters. Owners often prefer the FM-62 mulch and finish over a brush hog on grass and mixed growth when paced correctly.
- Lower-HP compact use. Reports of successful use around the mid-20s HP appear often, with notes that engaging PTO at too-low idle can stall lighter tractors.
- Rear gate tradeoff. Owners discuss closing the rear panel for finer mulch versus opening it when heavy cutting packs material under the deck.
- Hammer wear and fasteners. Hammer wear and loosening hardware after hard brush work are common maintenance themes.
- Shipping damage support. When freight dings appear, owner comments often focus on Woodmaxx sending parts or touch-up materials quickly.
Detailed specifications & features
55″ fixed-offset PTO flail mower for Category 1 compact tractors in the 20–45 HP range.
Verified manufacturer weight is 641 lb machine weight and 800 lb shipping weight; the 716 lb figure belongs to the FM-62H.
Choose 18 hammer blades or 36 Y-blades at order.
Build highlights include a 5″ rotor, three BX39 Gates belts, automatic belt tensioner, reverse rotation, and greaseable bearings.
Key features
- +20–45 HP Category 1 tractor range
- +641 lb machine weight and 800 lb shipping weight
- +Fixed offset — 36″ right / 29″ left from PTO center
- +18 hammers (~1.85 lb each) or 36 Y-blades
- +5″ rotor at approximately 2160 RPM with ~95 mph tip speed
Manufacturer-published specs
- Cutting width
- 55 in
- Overall width
- 65 in
- Cutting height
- 3/4 – 3-3/4 in
- PTO horsepower
- 20–45 HP
- Hitch type
- Category 1
- Machine weight
- 641 lb
- Shipping weight
- 800 lb
- Blade count
- 18 hammer or 36 Y-blades
- Hammer weight
- Approximately 1.85 lb each
- Blade tip speed
- 95 mph
- Blade swing diameter
- 14-13/16 in
- Rotor
- 5 in tube at approximately 2160 RPM
- Drive belts
- 3× BX39 Gates Truflex
- Offset
- Fixed 36″ right / 29″ left from PTO center
- Rear roller
- 5.25 in with tapered ends
- Warranty
- 2-year parts (see Woodmaxx policy)
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the Woodmaxx FM-62?+
Woodmaxx lists a 20–45 HP range with a Category 1 hitch. Use the verified 641 lb machine weight and 800 lb shipping weight when checking lift capacity.
Does the FM-62 require rear hydraulic remotes?+
No. The FM-62 is a fixed-offset mower and does not use hydraulic side shift. Rear remotes are only needed if you move up to the FM-62H.
What is the FM-62 offset?+
Woodmaxx lists fixed offset from PTO center of about 36″ to the right and 29″ to the left. It is useful for coverage and some edge work, but it cannot be adjusted from the seat.
FM-62 vs FM-62H, what is the difference?+
The FM-62H adds hydraulic side shift, weighs more, costs more, and needs one rear remote. The FM-62 keeps the same 55″ cut class in a simpler fixed-offset package.
Should I order hammers or Y-blades on the FM-62?+
Order hammers for brush, briars, saplings, and rough cleanup. Order Y-blades for grass and a cleaner finish. Woodmaxx lists 18 hammers at about 1.85 lb each or 36 Y-blades.
Is the FM-62 really 716 lb?+
No. The verified manufacturer specs for the non-H FM-62 are 641 lb machine weight and 800 lb shipping weight. The 716 lb figure belongs to the FM-62H.
How does the FM-62 handle wet grass?+
Owner themes include acceptable wet-grass performance, but dense wet material still requires slower ground speed and attention to discharge.
What belts does the FM-62 use?+
Woodmaxx lists three BX39 Gates belts with a solid-state automatic belt tensioner.
What warranty does the FM-62 include?+
Woodmaxx publishes a minimum 2-year parts warranty on equipment. Labor is not covered. Their published process is phone diagnosis with repair parts shipped first; photos or video may be required. For the FM-62, treat that as the brand baseline and confirm current terms on the Woodmaxx returns and warranty page before purchase.
