Woodmaxx · ReviewUpdated 2026-08-05

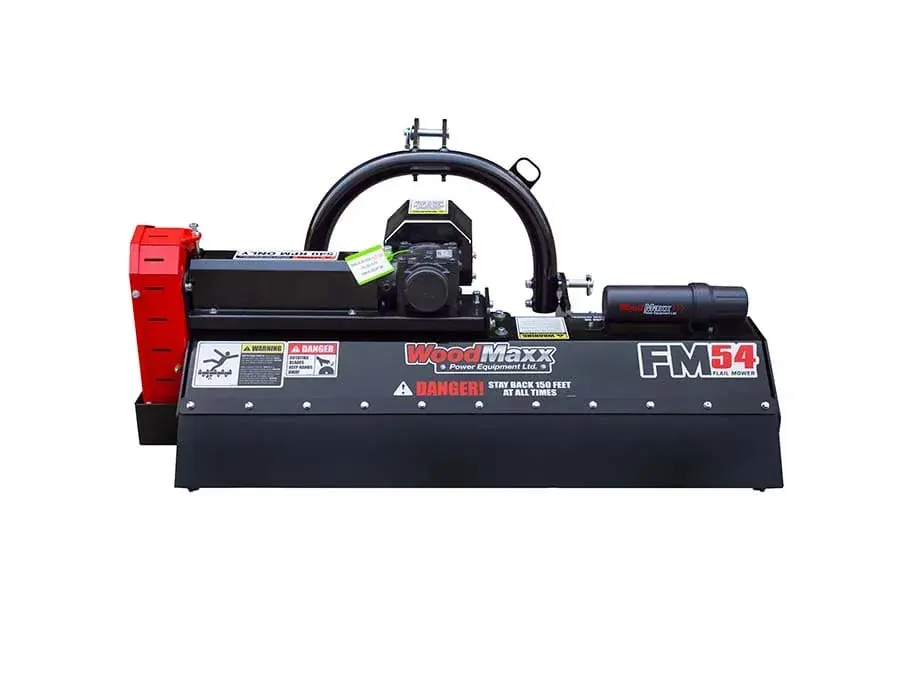

Woodmaxx FM-54 review
The FM-54 is the Woodmaxx FM-series pick for true subcompacts: a 47″ cut, 410 lb machine weight, and enough fixed offset to trim edges without hydraulic complexity.
Pros and cons
Pros
- Fits true subcompacts without overloading the 3-point
- Hammer or Y-blade choice at order
- 2-year parts warranty and factory-direct support from NY
Cons
- Narrower cut means more passes on open acreage
- No hydraulic side shift for fence-line reach
- Higher price than imported 48″ value flails
01What the FM-54 actually is
Woodmaxx lists the FM-54 as a Category 1 PTO flail for 15–25 HP tractors, with a 47″ cutting width and 56″ overall width. At about 410 lb machine weight and 500 lb shipping weight, it is the compact end of the FM line rather than a downsized utility-tractor mower.
The deck has a fixed offset: from the PTO centerline, Woodmaxx publishes about 31″ of reach to the right and 24″ to the left. That helps around fences and buildings, but it is not hydraulic side shift. You cannot slide the mower from the seat.
02Subcompact fit and lift reality
The FM-54 is the model buyers cross-shop when a 55″ flail starts to look too heavy or too wide for a BX-class tractor. Owner themes include successful fit on small Kubota and John Deere machines, but lift capacity, ballast, and PTO shaft length still matter more than the badge on the hood.
The 47″ cut means more passes on open acreage, yet it can also be easier to place between trees, along driveways, or around compact-property obstacles. For many subcompact owners, that trade is the point.
03Hammer blades vs Y-blades
Woodmaxx lists 18 hammers at roughly 1 lb 15 oz each, or 36 Y-blades. Hammers are the safer choice when the job includes brush, debris lots, and occasional woody growth; owner reviews specifically praise hammer performance in brushy cleanup.
Y-blades are the finish-cut option for grass, orchards, and maintained areas. The product-page accessory wording conflicts in one place, but Woodmaxx's product details list 36 Y-blades for the mower, and that is the count used here.
04Build and maintenance notes
The verified spec stack is a 3″ rotor at about 2092 RPM, 11.75″ blade swing, 72 mph tip speed, three belts, slip-clutch 1-3/8″ 6-spline PTO driveline, 4.25″ rear roller, and 3/4″–2.5″ cutting height range.
Gearbox oil is included, but the first-use checklist should still include oil level, PTO length, belt tension, and fastener checks. Owner themes also call out careful crating and responsive support when small order or shipping issues came up.
What's in the box
- FM-54 flail mower deck (hammer or Y-blade configuration as ordered)
- Category 1 three-point hitch mounting
- PTO driveline with 1-3/8″ 6-spline slip clutch
- Fixed-offset mower frame
- Rear gauge roller
- Gearbox oil (included per Woodmaxx)
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Front ballast if your subcompact needs it for a ~410 lb deck
- Hydraulic side shift or rear remotes
- Alternate blade style beyond the configuration ordered
- Woodmaxx product details list 36 Y-blades for the FM-54 despite one add-on kit title saying 18.
- Check gearbox oil level, PTO shaft length, belt tension, and blade hardware before first use.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- Woodmaxx
- Model
- FM-54
- Cutting width
- 47″
- Overall width
- 56″
- PTO horsepower
- 15–25 HP
- Min HP per foot of cut
- 3.83
- Hitch
- Category 1
- Offset
- Fixed offset
- Side-shift detail
- Fixed offset from PTO center: extends 31″ right / 24″ left. Not hydraulic.
- Rear remotes required
- 0
- Machine weight
- 410 lb
- Shipping weight
- 500 lb
- Cutting height
- ¾″–2.5″
- Rotor diameter
- 3″
- Rotor RPM
- 2,092 RPM
- Blade swing diameter
- 11.75″
- Blade tip speed
- 72 mph
- Hammer blades
- 18 × 1.9375 lb (34.9 lb total)
- Y-blades
- 36
- Blade options
- hammer / y-blade
- Belts
- 3
- PTO / driveline
- 1-3/8″ 6-spline with slip clutch
- Drive notes
- 3-belt drive, reverse-rotating 3″ rotor, 4.25″ rear roller, cast-iron oil-bath gearbox, greaseable bearings
- Price (list)
- $2,990
- Warranty
- 2 years parts
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 15–25 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 410 lb (shipping ~500 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- No rear remotes required for cutting. A standard 540 RPM PTO and matching hitch is enough.
- Ballast the front end on steep or soft ground, especially with wider decks (47″).
Who should buy the FM-54, and who should skip it
BX, 1025R, and similar subcompact owners who want a heavier-built flail than bargain imports, can live with a 47″ cut, and will choose hammers for brush or Y-blades for finish at order.
Your tractor is truly subcompact
The 410 lb mower weight and 15–25 HP band make more sense for BX/1025R-class tractors than the heavier 55″ models.
You want a flail instead of a brush hog
Hammers can mulch brush and debris-lot growth more finely than a rotary cutter when you work within the machine's limits.
You do not need hydraulic shift
The fixed right offset is useful for edges without adding remotes, hoses, or cylinder maintenance.
You mow mostly open acreage
A 47″ cut is slow on big fields; the FM-62 or FM-78 covers more ground if your tractor can lift and power it.
You need adjustable fence-line reach
The FM-54 is fixed-offset only. Look at H models if seat-controlled side shift is central to the job.
Lowest purchase price matters most
Imported 48″ competitors can cost less; Woodmaxx is the support-and-build-quality play.
Alternatives to consider
Accessories worth planning for
Front ballast / suitcase weightsOptional
Useful on BX/1025R-class tractors so a ~410 lb rear implement does not unload the front axle.
Replacement hammer or Y-blade kitOptional
Wear parts; order the kit that matches the hammer or Y-blade rotor configuration you selected.
Spare blade hardwareOptional
Nuts, bolts, and hangers are inexpensive insurance when mowing brushy or debris-prone lots.
PTO shaft tools and greaseOptional
Needed for measuring/cutting the driveline if required and for routine PTO and bearing service.
Hammers vs Y-blades
Hammer blades
18 hammers · ~1 lb 15 oz each
Best for: Brushy lots, rough trails, vines, and debris-prone grass
Finish: Mulched / rough-cut finish
Owner themes praise the hammer setup for mulching brush on subcompact tractors when material size and ground speed stay reasonable.
Y-blades
36 knives
Best for: Grass, orchard floors, and maintained-property mowing
Finish: Cleaner grass finish than hammers
Woodmaxx product details list 36 Y-blades; one add-on kit title conflicts and should not be used as the mower count.
Choose hammer or Y-blade configuration at order. Treat later conversion as a parts/project decision, not a quick seasonal swap.
What owners say about the FM-54
Themes paraphrased from Woodmaxx-published owner reviews, TractorByNet FM-54 ownership threads, and compact-tractor forum reports (retrieved 2026-08-07). Not a scientific sample.
- Subcompact tractor fit. Owners commonly pair the FM-54 with BX-class, John Deere 1025R, and similar subcompacts when they want a flail lighter and narrower than 55″ decks.
- Brush and overgrowth performance. Rough cutting of tall grass, brush, and light saplings is the recurring praise point when operators keep ground speed modest.
- Lawn finish is secondary. On maintained lawn, owners often call the result acceptable but not finish-mower fine, and some keep a mid-mount mower for turf.
- Crating and delivery. Freight arrival in a steel-frame crate with tight packaging shows up repeatedly as a positive buying detail.
- First-hours hardware checks. Early ownership reports include loose fasteners, gearbox oil fill quirks, and PTO-shield fiddliness, so a shakedown inspection matters.
- Support when something is missing. Owners who contacted Woodmaxx about missing items or order questions generally describe responsive help.
Detailed specifications & features
47″ PTO flail mower for Category 1 subcompact tractors in the 15–25 HP range.
Fixed-offset deck extends 31″ right and 24″ left from PTO center; no hydraulic remotes are required.
Choose 18 hammer blades or 36 Y-blades at order. Manufacturer product details list 36 Y-blades despite one add-on kit title conflict.
Gearbox oil is included. Build highlights include a 3″ rotor, three-belt drive, slip-clutch PTO driveline, and a 4.25″ rear roller.
Key features
- +15–25 HP Category 1 tractor range
- +410 lb machine weight and 500 lb shipping weight
- +18 hammers (~1 lb 15 oz each) or 36 Y-blades
- +3″ rotor at approximately 2092 RPM with ~72 mph tip speed
- +Fixed offset — 31″ right / 24″ left from PTO center
- +1-3/8″ 6-spline PTO shaft with slip clutch
Manufacturer-published specs
- Cutting width
- 47 in
- Overall width
- 56 in
- Cutting height
- 3/4 – 2-1/2 in
- PTO horsepower
- 15–25 HP
- Hitch type
- Category 1
- Machine weight
- 410 lb
- Shipping weight
- 500 lb
- Blade count
- 18 hammer or 36 Y-blades
- Hammer weight
- Approximately 1 lb 15 oz each
- Blade tip speed
- 72 mph
- Blade swing diameter
- 11.75 in
- Rotor
- 3 in tube at approximately 2092 RPM
- Drive belts
- 3 belts
- Offset
- Fixed 31″ right / 24″ left from PTO center
- PTO
- 1-3/8 in 6-spline slip clutch
- Rear roller
- 4.25 in
- Warranty
- 2-year parts (see Woodmaxx policy)
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the Woodmaxx FM-54?+
Woodmaxx lists the FM-54 for 15–25 HP Category 1 tractors. It is the best fit in the Woodmaxx FM lineup for BX/1025R-class subcompacts, but you still need enough three-point lift for a roughly 410 lb mower plus driveline and terrain margin.
How wide does the FM-54 cut?+
The verified cutting width is 47″ and overall width is 56″. The model name is not the cutting width.
Does the FM-54 have hydraulic side shift?+
No. The FM-54 has fixed offset only: from PTO center it extends about 31″ to the right and 24″ to the left. It does not require rear hydraulic remotes.
Should I order hammers or Y-blades on the FM-54?+
Choose hammers for brush, vines, rough lanes, and debris-prone lots. Choose Y-blades for grass and cleaner finish mowing. Woodmaxx product details list 18 hammers or 36 Y-blades.
Why does one FM-54 kit mention 18 Y-blades?+
Woodmaxx product details for the mower list 36 Y-blades; one add-on kit title conflicts. This catalog uses the manufacturer product-detail count of 36.
What comes with the FM-54?+
The mower in the blade configuration ordered, Cat 1 hitch setup, PTO driveline with 1-3/8″ 6-spline slip clutch, rear roller, and gearbox oil. Confirm the current Woodmaxx packing list at checkout.
FM-54 vs FM-62, which should I buy?+
Buy the FM-54 for subcompact lift limits, tighter spaces, and 15–25 HP tractors. Buy the FM-62 if your compact tractor can handle a 641 lb machine and you want a 55″ cut.
Is the FM-54 better than a brush hog?+
It depends on the job. A flail with hammers can leave finer mulch and handle debris-prone property edges better than many rotary cutters, but it is not a forestry mulcher and should not be forced through oversized woody material.
What warranty does the FM-54 include?+
Woodmaxx publishes a minimum 2-year parts warranty on equipment. Labor is not covered. Their published process is phone diagnosis with repair parts shipped first; photos or video may be required. For the FM-54, treat that as the brand baseline and confirm current terms on the Woodmaxx returns and warranty page before purchase.
