MechMaxx · VAM · ReviewUpdated 2026-09-14
MechMaxx VAM65 review
The VAM65 has the hydraulic offset/tilt geometry buyers expect from a ditch-bank flail, but MechMaxx's own caveat narrows it sharply: green or tender grass only, not tall grass, shrubs, vines, or thorny brambles.
Pros and cons
Pros
- True ditch-bank articulation, 90° up and 60° down
- Up to 85″ offset from centerline at full reach
- Direct-sale price is low for a hydraulic offset/tilt mower
Cons
- MechMaxx caveat: green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- Requires two rear remote pairs for four hydraulic hoses
- 1-year warranty and more setup complexity than center-mount flails
01What the VAM65 actually is

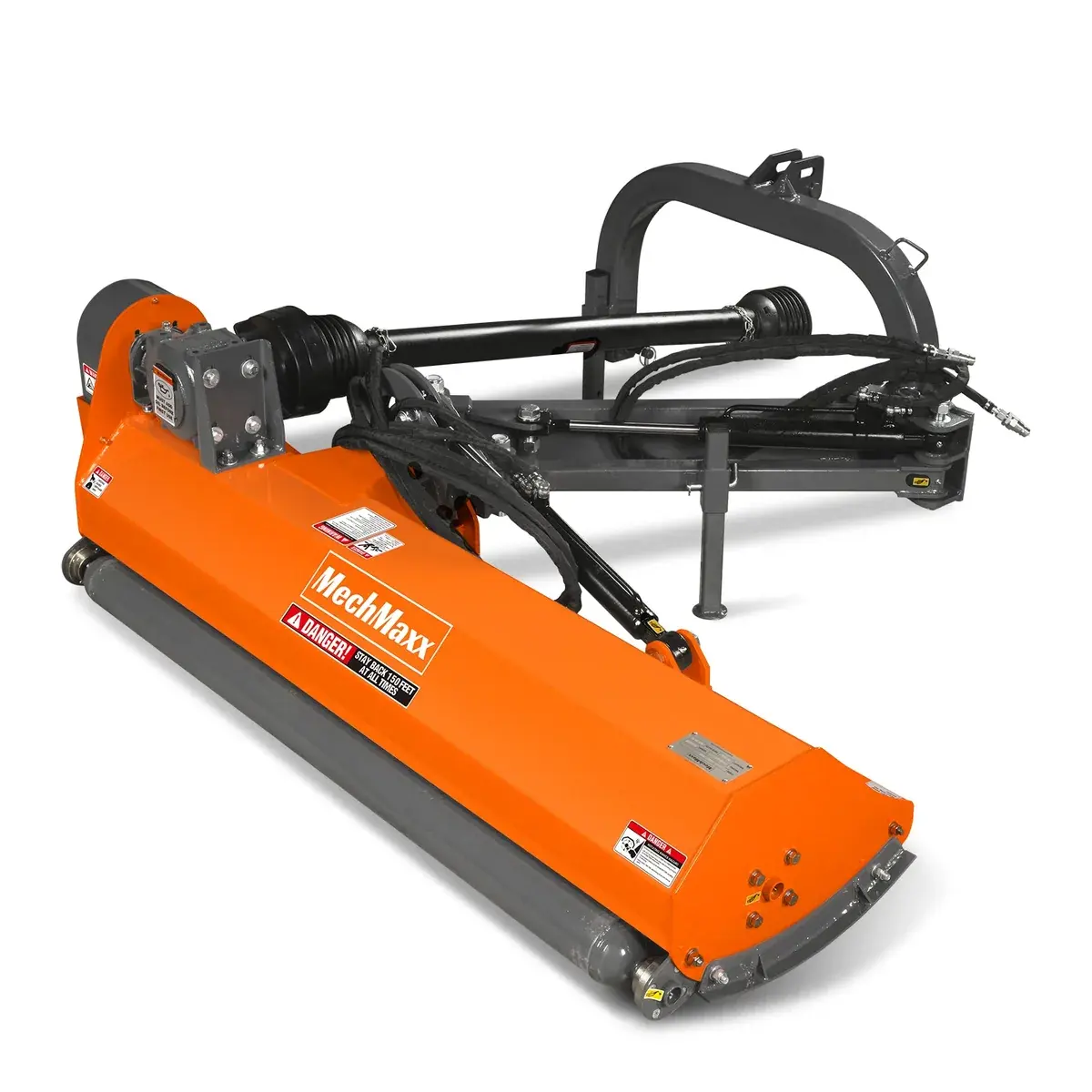

MechMaxx lists VAM65 as a 65″ cut, 72″ overall Category 1 ditch-bank mower for 30–60 HP tractors. Verified weights are 701 lb machine and 820 lb shipping.
The hydraulic geometry is the headline: 90° up tilt, 60° down tilt, up to 85″ maximum offset from center, and four G1/2 hydraulic hoses. Plan on two rear remote pairs and careful hose routing before ordering.
02The important manufacturer caveat
MechMaxx states that the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles. That caveat belongs at the center of the buying decision, because many ditch-bank shoppers are actually picturing overgrown brushy banks.
The mower has 28 hammers at about 0.9 lb each, a 4.3″ rotor at 2,356 RPM, 14″ swing, three 17x991 belts, and a long T6-LF-63 shear-bolt PTO shaft. The spec reads like a reach/grass machine, not a heavy-clearing head.
03Value vs NAM68H and Woodmaxx FM-78H
VAM65 is not a substitute for NAM68H or Woodmaxx FM-78H if the work is flat side-shift mowing. It adds tilt and offset complexity for slopes and banks, while requiring more hydraulic capacity and setup attention. Those two pairs now have their own spec pages: VAM65 vs NAM68H, and VAM65 vs FM-78H.
Against Woodmaxx, the VAM65 is a low-priced direct option for ditch-bank geometry, but the 1-year warranty and grass-only caveat make it a cautious recommendation. Buy for the specific tender-grass reach problem, not as a general brush flail.
What's in the box
- VAM65 ditch-bank flail mower deck with 28 hammers
- Category 1 offset/tilt mounting assembly
- Hydraulic offset and tilt hoses (four G1/2 hoses)
- T6-LF-63 shear-bolt PTO driveline (63–77″)
- 3× 17x991 belt drive
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Two rear hydraulic remote pairs for offset and tilt functions
- Hydraulic adapters or couplers required by your tractor
- Brush-capable cutter for tall grass, shrubs, vines, or brambles
- MechMaxx caveat: VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
- Plan PTO length, hose routing, ballast, and safe transport around the 85″ maximum offset geometry.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- MechMaxx
- Model
- VAM65
- Cutting width
- 65″
- Overall width
- 72″
- PTO horsepower
- 30–60 HP
- Min HP per foot of cut
- 5.54
- Hitch
- Category 1
- Offset
- Ditch-bank / verge (grass only, hydraulic tilt)
- Side-shift detail
- Ditch-bank offset with 90° up / 60° down tilt, up to 85″ max offset from center, and four G1/2 hydraulic hoses.
- Rear remotes required
- 2
- Machine weight
- 701 lb
- Shipping weight
- 820 lb
- Rotor diameter
- 4.3″
- Rotor RPM
- 2,356 RPM
- Blade swing diameter
- 14″
- Hammer blades
- 28 × 0.9 lb (25.2 lb total)
- Blade options
- hammer
- Belts
- 3 × V 17x991
- PTO / driveline
- 1-3/8″ Z6 shear-bolt PTO shaft T6-LF-63 (63–77″)
- Drive notes
- 3× 17x991 belts; manufacturer caveat says the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles
- Price (list)
- $2,999
- Warranty
- 1 year
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 30–60 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 701 lb (shipping ~820 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- Budget two rear remote pairs (four hoses) before you order. MechMaxx limits VAM to green or tender grass — not tall grass, shrubs, vines, or brambles.
- Ballast the front end on steep or soft ground, especially with wider decks (65″).
Who should buy the VAM65, and who should skip it
Operators maintaining tender roadside, pond-bank, or ditch grass who need 90° up / 60° down articulation, have two rear remote pairs, and do not expect brush-clearing performance.
You need offset and tilt for tender grass
The 90° up / 60° down geometry is useful for banks when the material fits MechMaxx's green/tender-grass caveat.
Your tractor has two rear remote pairs
Four hydraulic hoses mean two functions, so plan hydraulics before checkout.
You value low direct pricing
The verified $2,999 sale price is low for a hydraulic offset/tilt mower.
You need to cut tall grass or brush
MechMaxx explicitly says the VAM cannot cut tall grass, shrubs, vines, or thorny brambles.
You only need side shift
NAM68H is simpler if the job is fence-line reach rather than ditch-bank tilt.
Hydraulic setup is limited
Two rear remote pairs and a longer PTO/hose setup are part of the package.
Alternatives to consider
Accessories worth planning for
Second rear remote kitOptional
The VAM65 has four hydraulic hoses and needs two rear remote pairs for offset and tilt.
Hydraulic coupler adaptersOptional
Published hose ends are G1/2; match adapters and couplers to your tractor before first hookup.
Front ballast / loader ballastOptional
Important for a 701 lb mower that can reach up to 85″ from center.
Spare 17x991 belt setOptional
The VAM65 uses three 17x991 belts; keep a matched spare set for bank-mowing season.
Separate brush-clearing toolOptional
Needed if your ditch work includes tall grass, shrubs, vines, or brambles that MechMaxx excludes for the VAM.
Hammers vs Y-blades
Light hammer blades
28 hammers · ~0.9 lb each
Best for: Green or tender ditch-bank grass where offset and tilt matter
Finish: Utility grass finish
MechMaxx says the VAM cannot cut tall grass, shrubs, vines, or thorny brambles; do not treat these hammers as brush-clearing tooling.
Hammer-only published configuration, with a manufacturer caveat limiting the VAM to green or tender grass.
What owners say about the VAM65
Themes paraphrased from BillieS's May 2026 Green Tractor Talk follow-up after buying the MechMaxx 65″ ditch-bank flail, Loomis990's TMG/MechMaxx-class offset notes on the same thread, TractorByNet VAM65 shopping (cut-height and offset-weight), and MechMaxx's published grass-only caveat. Retrieved 2026-08-14. Not a scientific sample.
- Banks are the actual job. BillieS (Green Tractor Talk, May 2026) said vertical and upside-of-hill mowing takes practice, then called bank work the reason the VAM exists. Fence-line reach is a bonus, not the product.
- Hammers beat grass, do not finish it. The same GTT owner said 12″ grass was beaten off rather than cut clean, and that a T-blade flail still does the lawn. Hammers are the wrong tool if finish quality is the point.
- Light for a 60 HP tractor. BillieS would not put this deck on a tractor larger than about 45 HP, maybe a lower-HP 3-series, even though MechMaxx lists 60 HP. A 4066R felt oversized for the head.
- Hammer bolts on first mixed-growth pass. On 2–3 ft mixed grass, saplings, and briars, BillieS reported three hammer bolts failing on the first mow, lost hammers, vibration, and dents in the rear sheet metal. Forum replies asked whether locknuts walked off before the Grade 8 shanks snapped.
- Slow ground speed and weak sheet metal. A TMG-class offset owner on the same GTT thread runs about 1–1.7 mph, bent the box on a tree root, and added 3″ angle iron plus an RV level. Roller zerks sat too close to the ground to survive.
- Manufacturer grass-only caveat vs listing copy. MechMaxx's VAM caveat limits the head to green or tender grass. TractorByNet shoppers still quote listing language about covering material up to about 3″. Treat the caveat as the buying filter, not the marketing diameter.
- Two remotes and a 2″ cut ceiling. Four G1/2 hoses mean two rear remote pairs. On TractorByNet, a VAM65 shopper was told by MechMaxx that max cut height is 2″; several posters walked away because they leave 3–4″ of stubble.
Detailed specifications & features
65″ standard 3-point offset ditch-bank flail mower for Category 1 tractors in the 30–60 HP range.
Hydraulic offset and tilt provide 90° up, 60° down, and up to 85″ maximum offset from center.
Requires two rear remote pairs for four G1/2 hydraulic hoses.
Critical MechMaxx caveat: the VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
Key features
- +30–60 HP Category 1 tractor range
- +701 lb machine weight and 820 lb shipping weight
- +28 hammers at approximately 0.9 lb each
- +4.3″ rotor at 2,356 RPM with 14″ blade swing
- +T6-LF-63 shear-bolt PTO shaft, 63–77″
- +Manufacturer caveat limits use to green or tender grass
Manufacturer-published specs
- SKU
- 150145
- Cutting width
- 65 in
- Overall width
- 72 in
- PTO horsepower
- 30–60 HP
- Hitch type
- Category 1
- Machine weight
- 701 lb
- Shipping weight
- 820 lb
- Tilt range
- 90° up / 60° down
- Maximum offset
- 85 in from center
- Hydraulic hoses
- 4 hoses, G1/2
- Blade count
- 28 hammer blades
- Hammer weight
- Approximately 0.9 lb each
- Blade swing diameter
- 14 in
- Rotor
- 4.3 in tube at 2,356 RPM
- Drive belts
- 3× 17x991
- PTO
- T6-LF-63 shear-bolt, 63–77 in
- Manufacturer caveat
- Green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- Warranty
- 1 year
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the MechMaxx VAM65?+
MechMaxx lists VAM65 for 30–60 HP Category 1 tractors. Machine weight is 701 lb and shipping weight is 820 lb, with offset forces that make ballast important.
How far does the VAM65 tilt and offset?+
Verified specs list 90° up tilt, 60° down tilt, and up to 85″ maximum offset from center.
How many rear remotes does VAM65 need?+
Plan on two rear remote pairs. The VAM65 has four G1/2 hydraulic hoses for offset and tilt functions.
Can the VAM65 cut brush or brambles?+
No, per MechMaxx's caveat. The VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
What blades come on VAM65?+
MechMaxx lists 28 hammers at about 0.9 lb each. Despite the hammer format, the manufacturer caveat limits the VAM to green or tender grass.
What PTO shaft does VAM65 use?+
Verified specs list a T6-LF-63 shear-bolt PTO shaft, 63–77″.
VAM65 vs NAM68H, which should I buy?+
Buy VAM65 for tender-grass banks where tilt is necessary. Buy NAM68H for ordinary hydraulic side shift and rougher flat-edge mowing.
VAM65 vs Woodmaxx FM-78H, which should I buy?+
VAM65 is a low-cost ditch-bank geometry option with a strict grass-only caveat and 1-year warranty. FM-78H is a side-shift Woodmaxx flail with stronger support positioning but no ditch-bank tilt.
What warranty does the VAM65 include?+
MechMaxx publishes a 1-year warranty on machines (separate engine warranties may apply on some powered products). Against Woodmaxx FM models (2-year parts), that shorter term is the main support tradeoff for MechMaxx's lower sticker. Confirm the current machine warranty and claim path on the MechMaxx site before you buy; coverage language is thinner than Woodmaxx's published parts process.
