MechMaxx · VAM · ReviewUpdated 2026-09-14

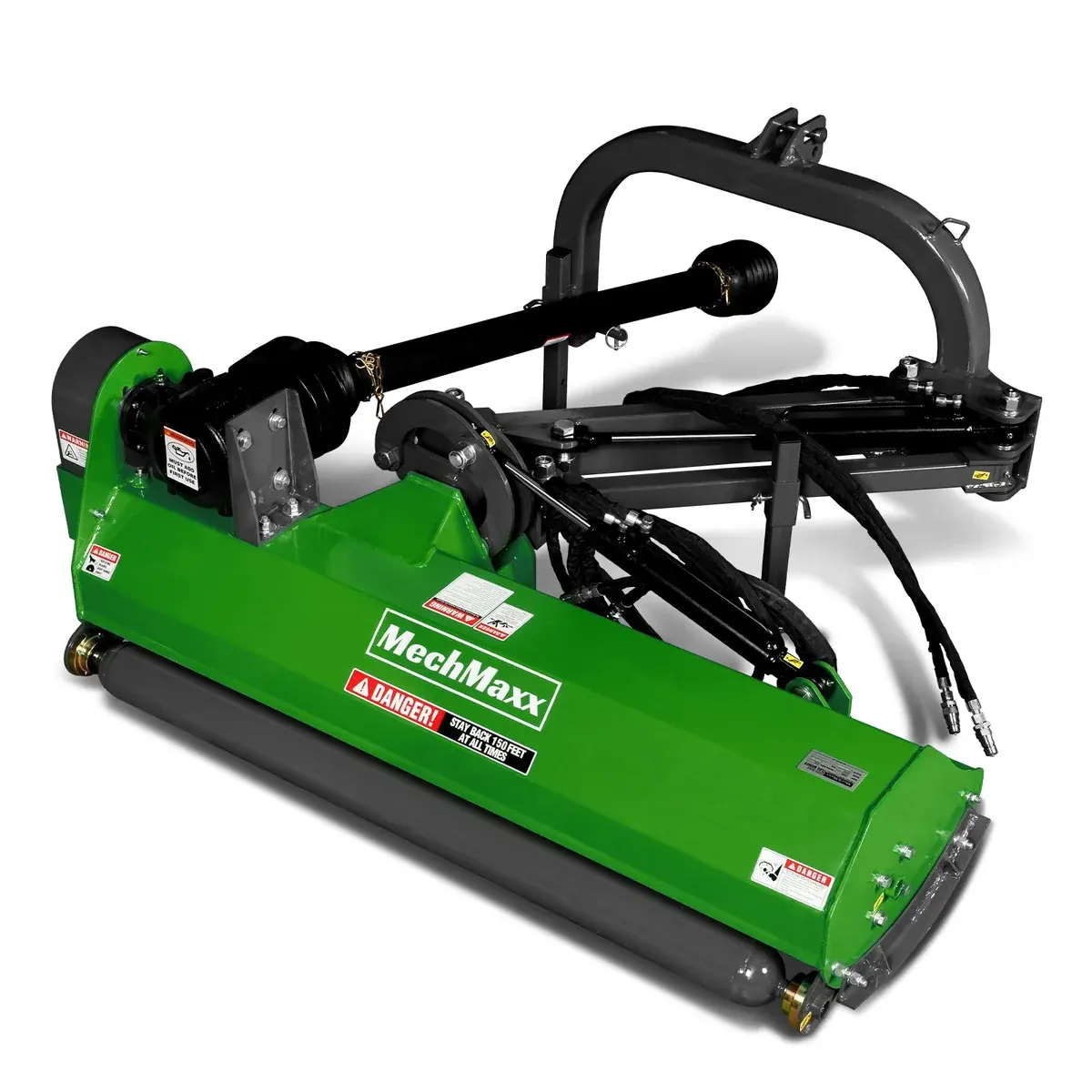

MechMaxx VAM60 review
The VAM60 adds useful ditch-bank width and 77″ max offset, but the same VAM warning applies: green/tender grass only, not tall grass, shrubs, vines, or brambles.
Pros and cons
Pros
- 60″ cut with 77″ maximum offset
- 90° up / 60° down hydraulic tilt for bank work
- Direct sale price is low for offset/tilt geometry
Cons
- MechMaxx caveat: green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- Four hydraulic hoses require two rear remote pairs
- Not a general-purpose brush flail despite the hammer rotor
01What the VAM60 actually is
MechMaxx lists VAM60 at 60″ cutting width, 64″ overall width, 25–60 HP, Category 1 hitch, 657 lb machine weight, and 772 lb shipping weight.
Hydraulic geometry includes 90° up tilt, 60° down tilt, up to 77″ max offset, and four hoses. Two rear remote pairs are required for the offset and tilt functions.
02Grass-only limitation
MechMaxx’s VAM caveat says these mowers can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles. A 60″ VAM should not be sold in this catalog as a brush ditch-bank mower.
Verified cutting specs include 24 hammers at about 0.9 lb each, a 4.3″ rotor at 2,356 RPM, 14″ swing, and three 17x991 belts. The setup is best understood as reach and contour capability for grass.
03VAM60 vs VAM48/VAM65
VAM60 is the middle-width VAM: more productive than VAM48 on long roadsides and banks, but less bulky than VAM65. The trade is weight, hydraulics, and offset leverage.
Against NAM68H, VAM60 adds tilt and needs twice the hydraulic remotes, while NAM-H is simpler for flat side-shift mowing and rougher field edges.
What's in the box
- VAM60 ditch-bank flail mower deck with 24 hammers
- Category 1 offset/tilt mounting assembly
- Hydraulic offset and tilt hoses (four hoses)
- 3× 17x991 belt drive
- 4.3″ rotor and rear roller assembly
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Two rear hydraulic remote pairs for offset and tilt functions
- Hydraulic adapters or couplers required by your tractor
- Brush-capable cutter for tall grass, shrubs, vines, or brambles
- MechMaxx caveat: VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
- Use the 77″ maximum offset when planning ballast and safe transport.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- MechMaxx
- Model
- VAM60
- Cutting width
- 60″
- Overall width
- 64″
- PTO horsepower
- 25–60 HP
- Min HP per foot of cut
- 5.00
- Hitch
- Category 1
- Offset
- Ditch-bank / verge (grass only, hydraulic tilt)
- Side-shift detail
- Ditch-bank offset with 90° up / 60° down tilt, up to 77″ max offset, and four hydraulic hoses.
- Rear remotes required
- 2
- Machine weight
- 657 lb
- Shipping weight
- 772 lb
- Rotor diameter
- 4.3″
- Rotor RPM
- 2,356 RPM
- Blade swing diameter
- 14″
- Hammer blades
- 24 × 0.9 lb (21.6 lb total)
- Blade options
- hammer
- Belts
- 3 × V 17x991
- PTO / driveline
- 1-3/8″ Z6 shear-bolt PTO shaft T6-LF-63 (63–77″)
- Drive notes
- 3× 17x991 belts; manufacturer caveat says the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles
- Price (list)
- $2,699
- Warranty
- 1 year
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 25–60 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 657 lb (shipping ~772 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- Budget two rear remote pairs (four hoses) before you order. MechMaxx limits VAM to green or tender grass — not tall grass, shrubs, vines, or brambles.
- Ballast the front end on steep or soft ground, especially with wider decks (60″).
Who should buy the VAM60, and who should skip it
25–60 HP owners maintaining longer tender-grass banks who need offset/tilt reach, two rear remote pairs, and more coverage than VAM48.
You need 60″ of offset/tilt grass mowing
The 77″ max offset and 90°/60° tilt are the reason to choose VAM60.
Your tractor has two rear remote pairs
Four hydraulic hoses require more hydraulic setup than NAM-H side shift.
You understand the material caveat
The use case is green or tender grass, not brush or bramble cleanup.
Your banks are overgrown brush
MechMaxx excludes tall grass, shrubs, vines, and thorny brambles for VAM mowers.
You only need fence-line side shift
NAM68H or NAM72H is simpler and needs only one remote pair.
Lift capacity is marginal
Use 657 lb machine weight plus offset leverage when checking tractor fit.
Alternatives to consider
Accessories worth planning for
Second rear remote kitOptional
VAM60 has four hydraulic hoses and needs two rear remote pairs for offset and tilt.
Hydraulic coupler adaptersOptional
Confirm tractor-side couplers and hose routing before bank mowing.
Front ballast / loader ballastOptional
Important for a 657 lb mower with up to 77″ max offset.
Spare 17x991 belt setOptional
VAM60 uses three 17x991 belts.
Separate brush-clearing toolOptional
Use a different implement for tall grass, shrubs, vines, or brambles excluded by the VAM caveat.
Hammers vs Y-blades
Light hammer blades
24 hammers · ~0.9 lb each
Best for: Green or tender grass on longer banks and roadsides
Finish: Utility grass finish
The VAM grass-only caveat applies despite the hammer format.
Hammer-only published configuration, with a manufacturer caveat limiting VAM use to green or tender grass.
What buyers should know about the VAM60
Themes blend manufacturer VAM caveats with brand-level ditch-bank shopping discussions (retrieved 2026-08-07). Model-specific owner volume is thin.
- Middle VAM width. VAM60 sits between compact and VAM65 footprints for buyers who need more coverage without the widest head.
- Grass-only caveat. MechMaxx limits VAM use to green or tender grass and excludes tall grass, shrubs, vines, and thorny brambles.
- Hydraulic setup burden. Two rear remote pairs, hose routing, and offset forces matter as much as cut width.
- Not a NAM replacement. Bank geometry is the point; rough flat-edge clearing still points to NAM-H or rear flails.
Detailed specifications & features
MechMaxx lists VAM60 at 60″ cutting width, 64″ overall width, 25–60 HP, Category 1 hitch, 657 lb machine weight, and 772 lb shipping weight.
MechMaxx’s VAM caveat says these mowers can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles. A 60″ VAM should not be sold in this catalog as a brush ditch-bank mower.
60″ VAM ditch-bank mower with hydraulic offset/tilt, useful for tender grass banks but not brush or brambles.
Key features
- +25–60 HP Category 1 tractor range
- +657 lb machine weight and 772 lb shipping weight
- +24 hammers at approximately 0.9 lb each
- +4.3″ rotor at 2,356 RPM with 14″ blade swing
Manufacturer-published specs
- SKU
- 150144G
- Sale price
- $2,699
- Regular price
- $3,599
- Cutting width
- 60 in
- Overall width
- 64 in
- PTO horsepower
- 25–60 HP
- Hitch type
- Category 1
- Machine weight
- 657 lb
- Shipping weight
- 772 lb
- Blade count
- 24 hammer blades
- Hammer weight
- Approximately 0.9 lb each
- Rotor
- 4.3 in tube at 2,356 RPM
- Blade swing diameter
- 14 in
- Offset / tilt
- 77 in max offset; 90° up / 60° down tilt
- Manufacturer caveat
- Green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- Drive belts
- 3× V 17x991
- Warranty
- 1 year
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the MechMaxx VAM60?+
MechMaxx lists VAM60 for 25–60 HP Category 1 tractors. Machine weight is 657 lb and shipping weight is 772 lb.
How wide is the VAM60?+
The verified cutting width is 60″ and overall width is 64″.
How far does VAM60 tilt and offset?+
Verified specs list 90° up tilt, 60° down tilt, and up to 77″ maximum offset.
How many rear remotes does VAM60 need?+
Plan on two rear remote pairs because the VAM60 uses four hydraulic hoses for offset and tilt functions.
Can the VAM60 cut tall grass or brush?+
No, per MechMaxx’s caveat. The VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
What blades and rotor does VAM60 use?+
Verified specs list 24 hammers at about 0.9 lb each, a 4.3″ rotor at 2,356 RPM, 14″ swing, and three 17x991 belts.
VAM60 vs VAM65, which should I buy?+
VAM65 adds width and max offset. VAM60 is easier to place and lift while keeping the same grass-only VAM limitation.
VAM60 vs NAM68H, which should I buy?+
Buy VAM60 for tender-grass banks where tilt matters. Buy NAM68H for simpler side-shift mowing and rougher flat-edge work.
What warranty does the VAM60 include?+
MechMaxx publishes a 1-year warranty on machines (separate engine warranties may apply on some powered products). Against Woodmaxx FM models (2-year parts), that shorter term is the main support tradeoff for MechMaxx's lower sticker. Confirm the current machine warranty and claim path on the MechMaxx site before you buy; coverage language is thinner than Woodmaxx's published parts process.
