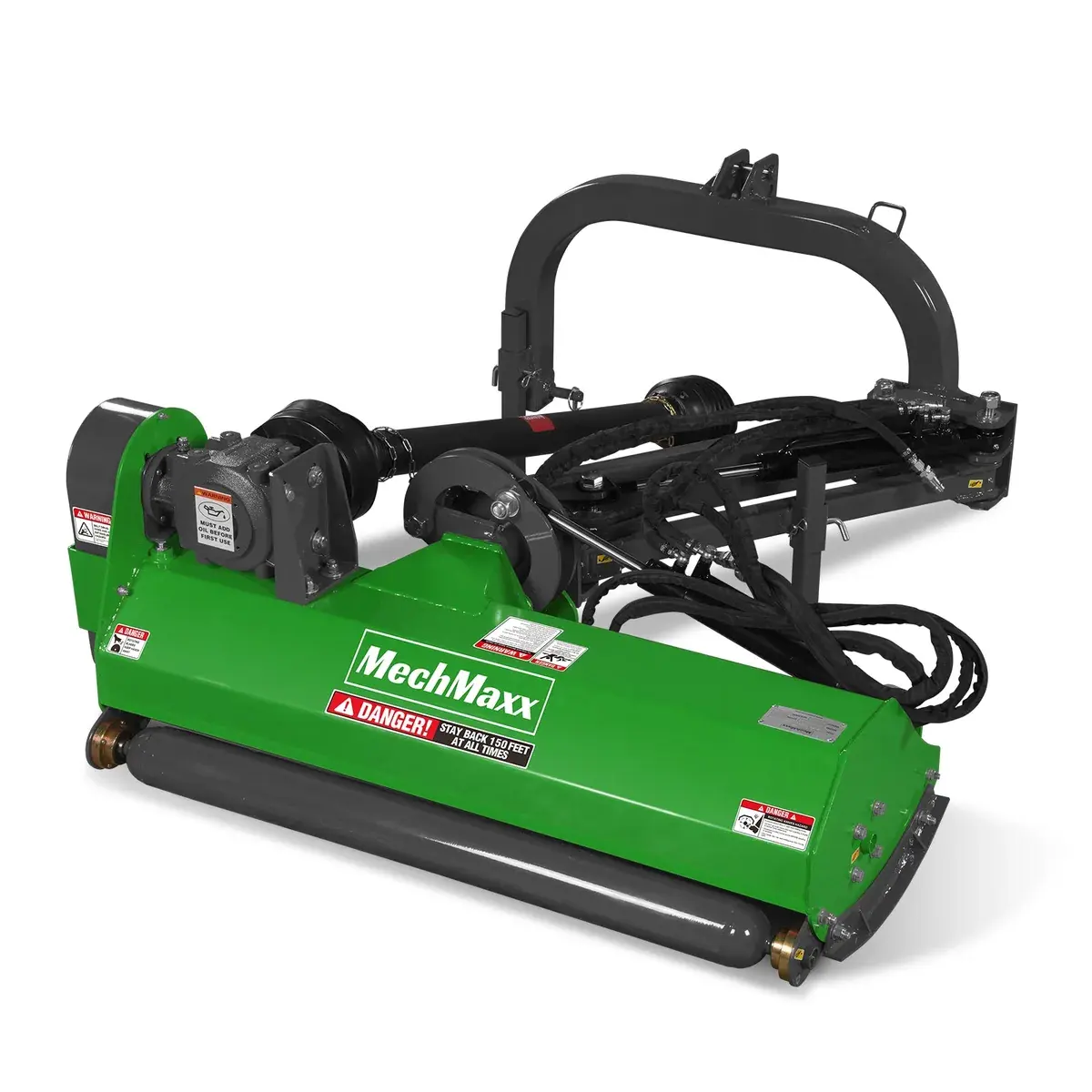

MechMaxx VAM48 review
The VAM48 gives compact tractors ditch-bank offset and tilt in a 48″ package, but the MechMaxx caveat is decisive: green/tender grass only, not tall grass, shrubs, vines, or brambles.
Pros and cons
Pros
- True ditch-bank geometry: 90° up and 60° down
- 69″ maximum offset in a narrower 48″ package
- Lower sale price than larger offset/tilt mowers
Cons
- MechMaxx caveat: green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- Requires two rear remote pairs for four hydraulic hoses
- Heavy for a 48″ mower at 613 lb machine weight
01What the VAM48 actually is
MechMaxx lists VAM48 at 48″ cutting width, 56″ overall width, 25–50 HP, Category 1 hitch, 613 lb machine weight, and 723 lb shipping weight.
The hydraulic geometry is the reason to buy it: 90° up tilt, 60° down tilt, up to 69″ max offset, and four hoses. Plan on two rear remote pairs, coupler matching, ballast, and PTO setup.
02The mandatory VAM caveat
MechMaxx states the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles. That is not fine print for this review. It is the core limitation.
The 20 hammers are about 0.9 lb each with a 4.3″ rotor at 2,356 RPM, 14″ swing, and three 17x991 belts. Those specs support reach mowing in grass, not brush-clearing claims.
03Value vs VAM60 and side-shift flails
VAM48 is the smaller offset/tilt choice if the tractor, gates, or ditches make a 60–65″ head awkward. It is still heavy for its cut width because the offset frame and hydraulics add mass.
If you only need flat fence-line reach, NAM68H or EFS/NAM standard models are simpler. Buy VAM48 for the specific tender-grass bank problem.
What's in the box
- VAM48 ditch-bank flail mower deck with 20 hammers
- Category 1 offset/tilt mounting assembly
- Hydraulic offset and tilt hoses (four hoses)
- T6-LF-63 shear-bolt PTO driveline (63–77″)
- 3× 17x991 belt drive
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Two rear hydraulic remote pairs for offset and tilt functions
- Hydraulic adapters or couplers required by your tractor
- Brush-capable cutter for tall grass, shrubs, vines, or brambles
- MechMaxx caveat: VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
- Plan PTO length, hose routing, ballast, and safe transport around the 69″ maximum offset geometry.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- MechMaxx
- Model
- VAM48
- Cutting width
- 48″
- Overall width
- 56″
- PTO horsepower
- 25–50 HP
- Min HP per foot of cut
- 6.25
- Hitch
- Category 1
- Offset
- Ditch-bank / verge (grass only, hydraulic tilt)
- Side-shift detail
- Ditch-bank offset with 90° up / 60° down tilt, up to 69″ max offset, and four hydraulic hoses.
- Rear remotes required
- 2
- Machine weight
- 613 lb
- Shipping weight
- 723 lb
- Rotor diameter
- 4.3″
- Rotor RPM
- 2,356 RPM
- Blade swing diameter
- 14″
- Hammer blades
- 20 × 0.9 lb (18.0 lb total)
- Blade options
- hammer
- Belts
- 3 × V 17x991
- PTO / driveline
- 1-3/8″ Z6 shear-bolt PTO shaft T6-LF-63 (63–77″)
- Drive notes
- 3× 17x991 belts; manufacturer caveat says the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles
- Price (list)
- $2,499
- Warranty
- 1 year
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 25–50 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 613 lb (shipping ~723 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- Budget two rear remote pairs (four hoses) before you order. MechMaxx limits VAM to green or tender grass — not tall grass, shrubs, vines, or brambles.
- Ballast the front end on steep or soft ground, especially with wider decks (48″).
Who should buy the VAM48, and who should skip it
25–50 HP Cat 1 owners maintaining tender grass on banks who need 90° up / 60° down articulation and have two rear remote pairs.
You need ditch-bank tilt in a compact width
The 48″ head is easier to place than VAM60/65 while still offering 90° up and 60° down tilt.
Your material is green or tender grass
That limitation matches MechMaxx’s published caveat.
Your tractor has two rear remote pairs
Four hydraulic hoses mean offset and tilt both need hydraulic control.
You need to cut tall grass, shrubs, vines, or brambles
MechMaxx explicitly excludes those materials for the VAM.
You only need side shift
A NAM-H side-shift deck is simpler if tilt is not required.
Your compact has limited lift or hydraulics
A 613 lb machine with offset forces is a serious fit check for a 48″ mower.
Alternatives to consider
Accessories worth planning for
Second rear remote kitOptional
VAM48 has four hydraulic hoses and needs two rear remote pairs for offset and tilt.
Hydraulic coupler adaptersOptional
Match hose ends and couplers to your tractor before first hookup.
Front ballast / loader ballastOptional
Important for a 613 lb mower that can reach 69″ from center.
Spare 17x991 belt setOptional
VAM48 uses three 17x991 belts; keep a matched spare set.
Separate brush-clearing toolOptional
Needed if your ditch work includes tall grass, shrubs, vines, or brambles that MechMaxx excludes for VAM.
Hammers vs Y-blades
Light hammer blades
20 hammers · ~0.9 lb each
Best for: Green or tender ditch-bank grass where offset and tilt matter
Finish: Utility grass finish
MechMaxx says the VAM cannot cut tall grass, shrubs, vines, or thorny brambles; do not treat these hammers as brush tooling.
Hammer-only published configuration, with a manufacturer caveat limiting VAM use to green or tender grass.
What buyers should know about the VAM48
Themes blend manufacturer VAM caveats with brand-level ditch-bank shopping discussions (retrieved 2026-08-07). Model-specific owner volume is thin.
- Compact ditch-bank geometry. A shorter VAM head helps where larger articulating decks are awkward around ponds and tight banks.
- Grass-only caveat. MechMaxx limits VAM use to green or tender grass and excludes tall grass, shrubs, vines, and thorny brambles.
- Hydraulic complexity. Two rear remote pairs make tractor hydraulic fit a central buying requirement.
- Weight surprise. Offset/tilt framing adds mass even on shorter cutting widths.
Detailed specifications & features
MechMaxx lists VAM48 at 48″ cutting width, 56″ overall width, 25–50 HP, Category 1 hitch, 613 lb machine weight, and 723 lb shipping weight.
MechMaxx states the VAM can only cut green or tender grass and cannot cut tall grass, shrubs, vines, or thorny brambles. That is not fine print for this review—it is the core limitation.
48″ VAM ditch-bank mower with hydraulic offset/tilt, strictly positioned for green or tender grass by MechMaxx.
Key features
- +25–50 HP Category 1 tractor range
- +613 lb machine weight and 723 lb shipping weight
- +20 hammers at approximately 0.9 lb each
- +4.3″ rotor at 2,356 RPM with 14″ blade swing
Manufacturer-published specs
- SKU
- 150143G
- Sale price
- $2,499
- Regular price
- $3,399
- Cutting width
- 48 in
- Overall width
- 56 in
- PTO horsepower
- 25–50 HP
- Hitch type
- Category 1
- Machine weight
- 613 lb
- Shipping weight
- 723 lb
- Blade count
- 20 hammer blades
- Hammer weight
- Approximately 0.9 lb each
- Rotor
- 4.3 in tube at 2,356 RPM
- Blade swing diameter
- 14 in
- Offset / tilt
- 69 in max offset; 90° up / 60° down tilt
- Manufacturer caveat
- Green or tender grass only; not tall grass, shrubs, vines, or thorny brambles
- PTO
- 1-3/8″ Z6 shear-bolt PTO shaft T6-LF-63 (63–77″)
- Drive belts
- 3× V 17x991
- Warranty
- 1 year
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the MechMaxx VAM48?+
MechMaxx lists VAM48 for 25–50 HP Category 1 tractors. Machine weight is 613 lb and shipping weight is 723 lb.
How wide is the VAM48?+
The verified cutting width is 48″ and overall width is 56″.
How far does VAM48 tilt and offset?+
Verified specs list 90° up tilt, 60° down tilt, and up to 69″ maximum offset.
How many rear remotes does VAM48 need?+
Plan on two rear remote pairs because the VAM48 uses four hydraulic hoses for offset and tilt functions.
Can the VAM48 cut brush or brambles?+
No, per MechMaxx’s caveat. The VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
What blades come on VAM48?+
MechMaxx lists 20 hammers at about 0.9 lb each. Despite the hammer format, the VAM caveat limits it to green or tender grass.
What PTO shaft does VAM48 use?+
Verified specs list a T6-LF-63 shear-bolt PTO shaft, 63–77″.
VAM48 vs VAM60, which should I buy?+
Buy VAM48 for tighter banks, smaller gates, and lower width. Buy VAM60 for longer tender-grass runs when your tractor can handle the extra width and weight.
What warranty does the VAM48 include?+
MechMaxx publishes a 1-year warranty on machines (separate engine warranties may apply on some powered products). Against Woodmaxx FM models (2-year parts), that shorter term is the main support tradeoff for MechMaxx's lower sticker. Confirm the current machine warranty and claim path on the MechMaxx site before you buy; coverage language is thinner than Woodmaxx's published parts process.
