MechMaxx · EFS · ReviewUpdated 2026-08-05

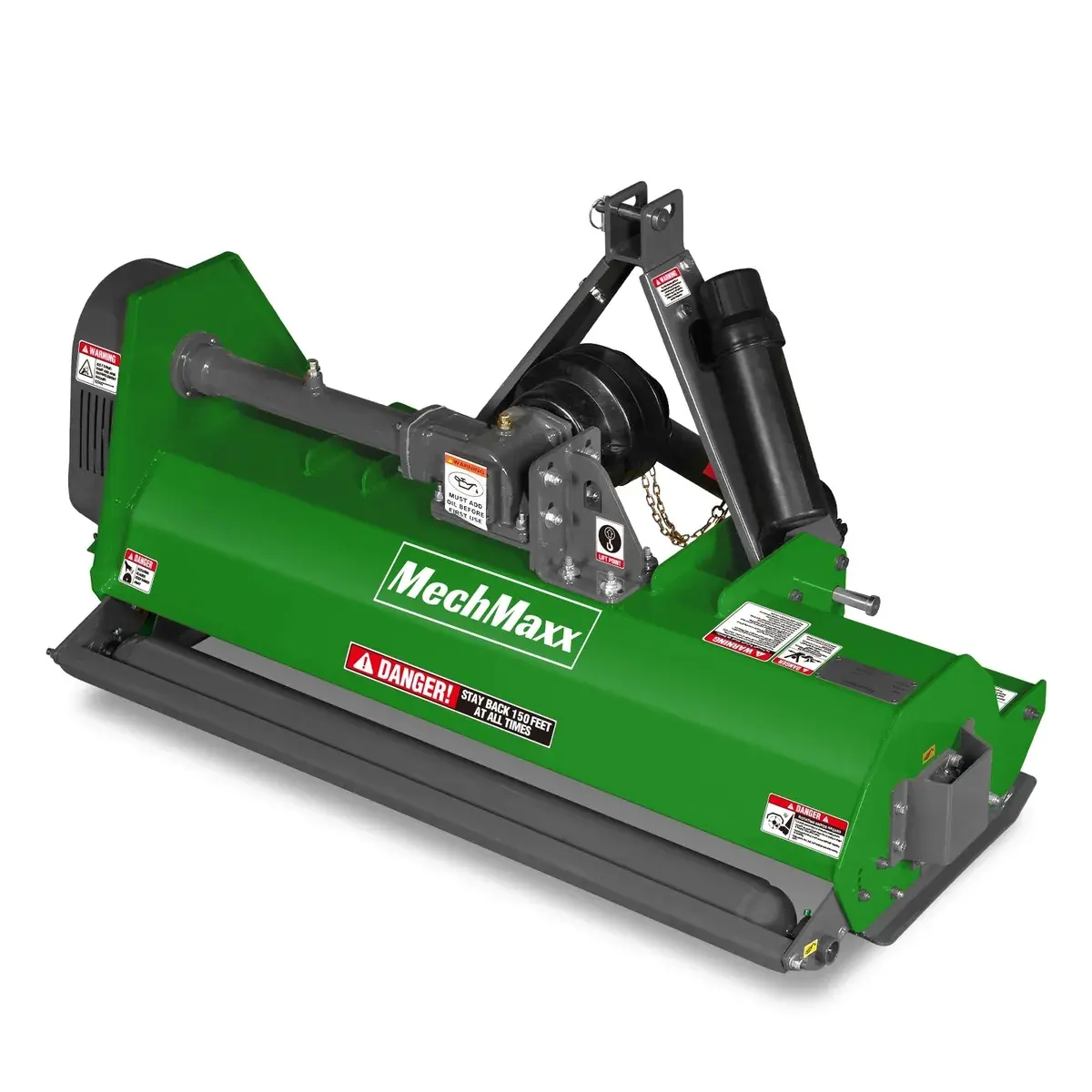

MechMaxx EFS48 review
The EFS48 is the value 48″ MechMaxx flail: light enough for many small tractors, inexpensive at the verified sale price, and best treated as a light-duty hammer mower rather than a Woodmaxx support-equivalent.
Pros and cons
Pros
- Aggressive $1,499 sale price vs Woodmaxx FM-54
- 379 lb machine weight is easier to lift than heavier compact flails
- SKF external bearings, belt tensioner, and shear-bolt PTO in the published spec
Cons
- 1-year warranty vs Woodmaxx 2-year
- Hammer-only rotor with no Y-blade finish option
- Published material limit is only about 0.75″ diameter
01What the EFS48 actually is
MechMaxx lists the EFS48 as a 48″ cutting-width, 56″ overall-width Category 1 flail for 15–35 HP tractors. Verified weights are 379 lb machine weight and 470 lb shipping weight, which puts it in the lift range many subcompacts can consider after ballast and PTO fit checks.
The deck is fixed/offset rather than hydraulic side shift, so there are no rear remote requirements. Published specs include a 0.6″–1.8″ cutting-height range, 3″ rotor at 2,958 RPM, 11″ blade swing, and about 97 mph blade tip speed.
02Light-duty limits and blade setup
This is a hammer-only mower: MechMaxx lists 20 cast-steel hammers at about 0.8 lb each. That setup is useful for weeds and rough grass, but the manufacturer material limit is about 0.75″ diameter, so it should not be bought as a sapling or heavy-brush tool.
The drive spec is three V 13x1041 belts with a tensioner, SKF external bearings, and a shear-bolt PTO shaft. Those are good value cues, but they do not erase the lighter deck dimensions (0.16″ deck and 0.24″ side plate) compared with heavier flails.
03Value vs Woodmaxx FM-54
At the verified sale price, EFS48 is far less expensive than the Woodmaxx FM-54. The trade is clear: MechMaxx gives you a lower direct price and free-shipping positioning, while Woodmaxx brings a 2-year warranty, hammer/Y-blade ordering options, and a more established support story.
If the job is mostly open grass and light weeds, EFS48 is the budget foil. If blade choice, parts guidance, and warranty support matter more than the initial purchase price, the FM-54 remains the safer premium pick. Total hammer mass is about 16 lb here versus about 35 lb on FM-54; PTO protection is shear-bolt versus slip clutch.
What's in the box
- EFS48 light-duty flail mower deck with 20 cast-steel hammers
- Category 1 fixed/offset three-point mounting
- Shear-bolt PTO driveline T5-LF-31 (31–43″)
- 3× V 13x1041 belt drive with tensioner
- Rear roller and SKF external rotor bearings
- Tractor with Category 1 three-point hitch and 540 RPM PTO
- Front ballast if your subcompact needs it for a 379 lb mower
- Hydraulic side shift or rear remotes
- Y-blade kit or alternate finish blade setup
- MechMaxx lists free shipping to the continental US at the verified sale date; confirm at checkout.
- Check gearbox oil, shear bolt, PTO length, belt tension, and hammer hardware before first use.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- MechMaxx
- Model
- EFS48
- Cutting width
- 48″
- Overall width
- 56″
- PTO horsepower
- 15–35 HP
- Min HP per foot of cut
- 3.75
- Hitch
- Category 1
- Offset
- Fixed offset
- Side-shift detail
- Cat 1 offset mount; fixed, not hydraulic side shift.
- Rear remotes required
- 0
- Machine weight
- 379 lb
- Shipping weight
- 470 lb
- Cutting height
- 0.6″–1.8″
- Rotor diameter
- 3″
- Rotor RPM
- 2,958 RPM
- Blade swing diameter
- 11″
- Blade tip speed
- 97 mph
- Hammer blades
- 20 × 0.8 lb (16.0 lb total)
- Blade options
- hammer
- Belts
- 3 × V 13x1041
- PTO / driveline
- 1-3/8″ Z6 shear-bolt PTO shaft T5-LF-31 (31–43″)
- Drive notes
- 3× V 13x1041 belts with tensioner, SKF external bearings, 3″ rotor at 2,958 RPM, manufacturer material limit about 0.75″ diameter
- Price (list)
- $1,499
- Warranty
- 1 year
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 15–35 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 379 lb (shipping ~470 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 1.
- No rear remotes required for cutting. A standard 540 RPM PTO and matching hitch is enough.
- Ballast the front end on steep or soft ground, especially with wider decks (48″).
Who should buy the EFS48, and who should skip it
Subcompact and small-compact owners who want the lowest direct-manufacturer price for grass, weeds, and very light brush, and who are comfortable with a 1-year warranty and hammer-only rotor.
You want the lowest 48″ flail price
The verified $1,499 sale price undercuts Woodmaxx while keeping a Cat 1 PTO layout.
Your work is light-duty grass and weeds
The published material limit is about 0.75″ diameter, so stay in light brush and manage ground speed.
You do not need hydraulics or Y-blades
No rear remotes are required, and the hammer-only setup keeps the purchase simple.
You want finish-mower behavior
There is no Y-blade option on this SKU; Woodmaxx FM-54 is the closer fit for an order-time Y-blade choice.
Brush exceeds light-duty limits
The manufacturer limit is about 0.75″ material, not sapling-clearing territory.
Warranty and support outweigh price
Woodmaxx costs more but has a 2-year parts warranty and stronger support positioning.
Alternatives to consider
Accessories worth planning for
Front ballast / suitcase weightsOptional
Helpful on subcompacts so a 379 lb rear mower and PTO shaft do not make steering light.
Spare V 13x1041 belt setOptional
The EFS48 uses three belts; stocking a matched set reduces downtime.
Replacement hammer and hardware kitOptional
Wear parts for the 20-hammer rotor; useful if mowing debris-prone grass or light brush.
Shear bolts and PTO greaseOptional
The published PTO uses shear-bolt protection, so keep correct replacements and service grease on hand.
Hammers vs Y-blades
Cast-steel hammer blades
20 hammers · ~0.8 lb each
Best for: Grass, weeds, and very light brush within the published 0.75″ material limit
Finish: Mulched / rough-cut finish
MechMaxx does not list a Y-blade option for this EFS SKU; treat it as hammer-only.
Hammer-only published configuration. Do not plan on an order-time Y-blade finish setup unless MechMaxx changes the SKU.
What owners and shoppers say about the EFS48
Themes paraphrased from r/kubota BX23S + MechMaxx 48″ posts, Kubota-forum and Facebook owner comments, plus manufacturer positioning (retrieved 2026-08-14). Sample size is small. Not a scientific sample.
- Subcompact and compact fit. Owners report successful use on BX23S- and B-series-class tractors when three-point capacity matches the published weight.
- PTO shaft length trimming. A recurring setup note is cutting the included PTO shaft shorter before regular use.
- Grass finish and light brush. Owners describe a decent grass finish when they stay inside the published ~0.75″ material limit. Treat sapling talk as unverified forum chatter, not a rating.
- Value perception. Buyers who posted after purchase often frame the EFS48 as a strong price-to-capability pick versus premium brands.
- Light-duty material limit. Manufacturer light-duty positioning still matters: treat it as grass, weeds, and modest brush, not a heavy clearing head.
- Warranty and support tradeoff. Forum shoppers often accept a 1-year warranty and direct-import support path as the cost of the lower sticker.
Detailed specifications & features
48″ light-duty PTO flail mower for Category 1 tractors in the 15–35 HP range.
Fixed Cat 1 offset mount with no hydraulic side shift and zero rear remotes required.
Hammer-only rotor with 20 cast-steel hammers at about 0.8 lb each; manufacturer material limit is about 0.75″ diameter.
Build highlights include a 3″ rotor at 2,958 RPM, three V 13x1041 belts with tensioner, SKF external bearings, and shear-bolt PTO shaft.
Key features
- +15–35 HP Category 1 tractor range
- +379 lb machine weight and 470 lb shipping weight
- +20 cast-steel hammers at approximately 0.8 lb each
- +3″ rotor at 2,958 RPM with 11″ blade swing
- +142 ft/s tip speed (approximately 97 mph)
- +SKF external bearings
- +1-3/8 Z6 T5-LF-31 shear-bolt PTO shaft, 31–43″
Manufacturer-published specs
- SKU
- 150134G
- Cutting width
- 48 in
- Overall width
- 56 in
- Cutting height
- 0.6 – 1.8 in
- PTO horsepower
- 15–35 HP
- Hitch type
- Category 1 fixed/offset
- Machine weight
- 379 lb
- Shipping weight
- 470 lb
- Blade count
- 20 hammer blades
- Hammer weight
- Approximately 0.8 lb each
- Blade tip speed
- 142 ft/s (~97 mph)
- Blade swing diameter
- 11 in
- Rotor
- 3 in tube at 2,958 RPM
- Drive belts
- 3× V 13x1041
- Bearings
- SKF external bearings
- PTO
- 1-3/8 Z6 T5-LF-31 shear-bolt, 31–43 in
- Max material
- About 0.75 in diameter (manufacturer rating)
- Deck / side plate
- 0.16 in deck / 0.24 in side
- Warranty
- 1 year
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the MechMaxx EFS48?+
MechMaxx lists the EFS48 for 15–35 HP Category 1 tractors. Machine weight is 379 lb and shipping weight is 470 lb, so subcompact owners still need to check three-point lift, ballast, and PTO shaft fit.
How wide is the EFS48?+
The verified cutting width is 48″ and overall width is 56″.
Does the EFS48 have hydraulic side shift?+
No. It uses a fixed Cat 1 offset mount and requires zero rear hydraulic remotes.
What blades come on the EFS48?+
MechMaxx lists 20 cast-steel hammer blades at about 0.8 lb each. This SKU is hammer-only; no Y-blade option is listed.
What can the EFS48 cut?+
Use it for grass, weeds, and very light brush. The manufacturer material limit is about 0.75″ diameter, so it is not a sapling or heavy-brush mower.
What belts and PTO does the EFS48 use?+
Verified specs list three V 13x1041 belts with a tensioner and a 1-3/8″ Z6 shear-bolt PTO shaft, T5-LF-31, 31–43″.
EFS48 vs Woodmaxx FM-54, which should I buy?+
Buy EFS48 for the lower $1,499 sale price and lighter machine weight. Buy FM-54 if you value Woodmaxx's 2-year warranty, Y-blade ordering option, and stronger support positioning.
Is shipping included on the EFS48?+
MechMaxx advertised free shipping to the continental US at the 2026-08-05 verification date. Confirm current shipping and freight delivery terms at checkout.
What warranty does the EFS48 include?+
MechMaxx publishes a 1-year warranty on machines (separate engine warranties may apply on some powered products). Against Woodmaxx FM models (2-year parts), that shorter term is the main support tradeoff for MechMaxx's lower sticker. Confirm the current machine warranty and claim path on the MechMaxx site before you buy; coverage language is thinner than Woodmaxx's published parts process.
