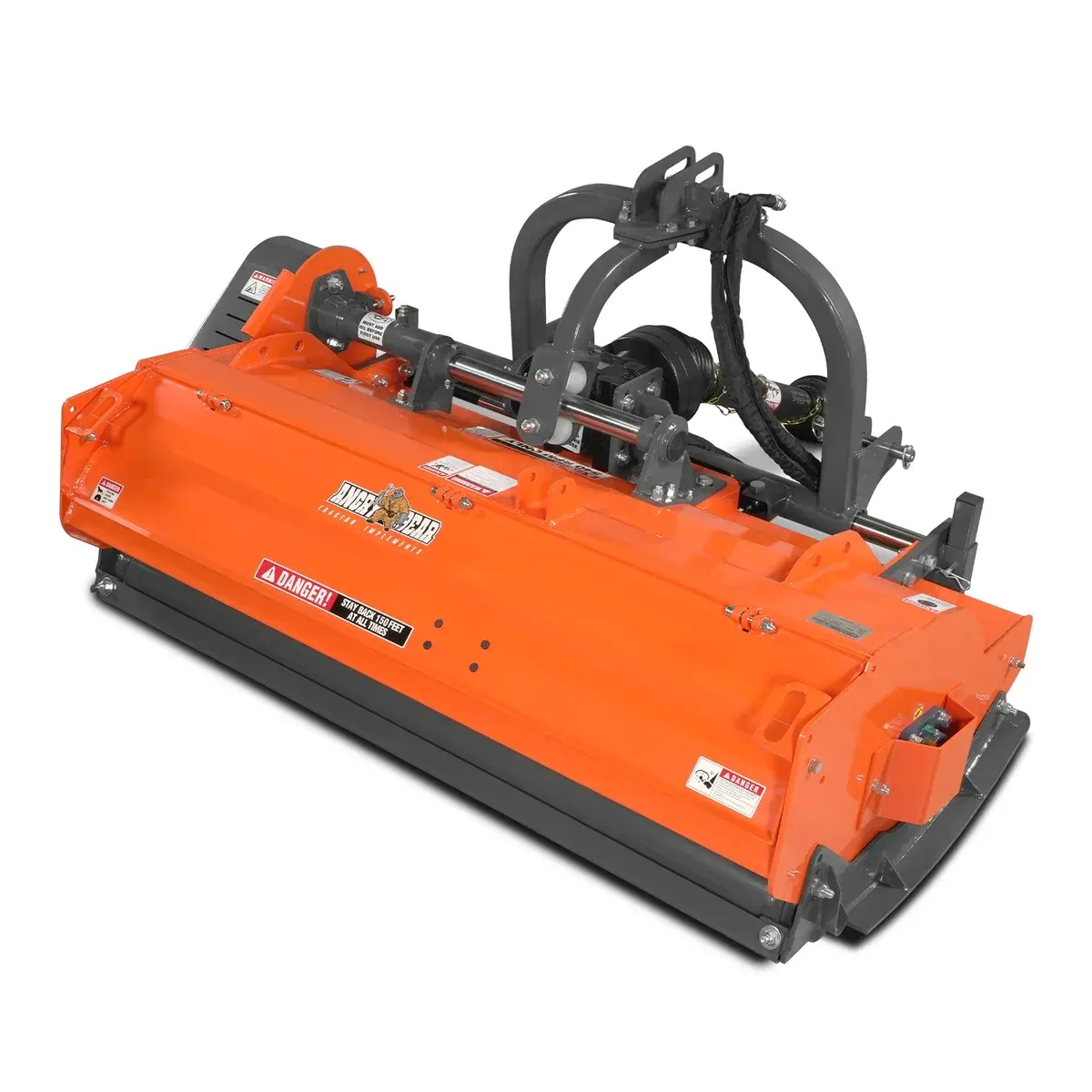

MechMaxx KDK63H review
The KDK63H is the heavier Cat 2 step up from NAM-H: 63″ cut, 2.7 lb hammers, 6″ rotor, five belts, and a one-remote hydraulic extend.
Pros and cons
Pros
- Heavier Cat 2 platform than NAM-H
- 2.7 lb hammers, 6″ rotor, and five-belt drive
- SKF bearings, CMR gearbox note, and openable rear cover in published specs
Cons
- Over 1,000 lb machine weight demands serious lift and ballast
- Not a ditch-bank tilt mower
- Published 31.5 mph tip-speed figure looks anomalously low and should be verified
01What the KDK63H actually is
MechMaxx lists KDK63H at 63″ cutting width, 73″ overall width, 50–75 HP, Category 2 hitch, 1,041 lb machine weight, and 1,168 lb shipping weight.
Hydraulic horizontal extend is published around 13–13.4″ and requires one rear remote pair. This is side shift/extend, not ditch-bank tilt.
02Heavy-duty step up from NAM-H
The KDK package moves to 14 hammers at about 2.7 lb each, a 6″ rotor at 2,082 RPM, 16″ blade swing, 0″–3″ cutting-height range, and five AV17x1245 belts.
Published build notes include SKF bearings, a CMR gearbox note, and an openable rear cover. Those specs make KDK a heavier Cat 2 choice for larger tractors than NAM-H, not a compact-value replacement.
03Tip-speed anomaly and buying cautions
MechMaxx lists blade speed at 31.5 mph, which looks anomalously low for this class. This catalog keeps it only as “manufacturer-listed tip speed 31.5 mph (verify)” and does not treat it as a selling point.
The main fit risks are weight, Cat 2 geometry, and support expectations. Woodmaxx FM-78H is a premium support comparison; KDK72H is the wider KDK sibling.
What's in the box
- KDK63H heavy-duty flail mower deck with 14 hammers
- Category 2 mounting with hydraulic horizontal extend
- Hydraulic side-shift/extend hoses for one rear remote pair
- 5× AV17x1245 belt drive
- Openable rear cover, SKF bearings, and CMR gearbox per published notes
- Tractor with Category 2 three-point hitch and 540 RPM PTO
- One rear hydraulic remote pair for horizontal extend
- Front ballast or loader weight as needed for a 1,041 lb mower
- Ditch-bank tilt function
- Published blade speed is 31.5 mph and should be verified before using it for performance comparisons.
- Arrange unloading for a roughly 1,168 lb shipment.
Full specifications
Normalized from manufacturer data (verified 2026-08-05). Always confirm on the current product page before you order.
- Brand
- MechMaxx
- Model
- KDK63H
- Cutting width
- 63″
- Overall width
- 73″
- PTO horsepower
- 50–75 HP
- Min HP per foot of cut
- 9.52
- Hitch
- Category 2
- Offset
- Hydraulic side shift (no tilt)
- Side-shift detail
- Hydraulic horizontal extend approximately 13–13.4″.
- Rear remotes required
- 1
- Machine weight
- 1,041 lb
- Shipping weight
- 1,168 lb
- Cutting height
- 0″–3″
- Rotor diameter
- 6″
- Rotor RPM
- 2,082 RPM
- Blade swing diameter
- 16″
- Blade tip speed
- 31.5 mph manufacturer-listed (verify; RPM × swing is ~99 mph)
- Hammer blades
- 14 × 2.7 lb (37.8 lb total)
- Blade options
- hammer
- Belts
- 5 × AV17x1245
- Drive notes
- 5× AV17x1245 belts, SKF bearings, CMR gearbox note, openable rear cover; manufacturer-listed tip speed 31.5 mph (verify)
- Price (list)
- $3,399
- Warranty
- 1 year
- Specs verified
- 2026-08-05
Tractor compatibility
- Match PTO horsepower to 50–75 HP. Use PTO HP from the tractor manual, not engine HP. Published mins in this catalog are all at least 3.0 HP per foot of cut.
- Machine weight is about 1,041 lb (shipping ~1,168 lb) — confirm your tractor’s 3-point lift capacity with margin for the PTO shaft and terrain.
- Hitch requirement: Category 2.
- Budget one rear remote for lateral side shift. This deck does not tilt down a bank — slope work is the VAM line.
- Ballast the front end on steep or soft ground, especially with wider decks (63″).
Who should buy the KDK63H, and who should skip it
50–75 HP Cat 2 tractor owners who want a heavier side-shift flail than NAM-H and can safely handle a 1,041 lb machine.
You have a Cat 2 tractor
KDK63H is verified as Category 2, unlike the Cat 1 NAM-H models.
NAM-H feels too light for your work
The 2.7 lb hammers, 6″ rotor, and 1,041 lb machine weight are the KDK upgrade case.
You need side shift but not ditch-bank tilt
One rear remote runs the horizontal extend; VAM is the tilt family.
Your tractor is Cat 1 or lift-limited
This is a heavy Cat 2 mower with 1,168 lb shipping weight.
You need embankment articulation
KDK shifts horizontally but does not tilt up/down like VAM.
The tip-speed spec matters to your comparison
The published 31.5 mph figure should be verified before being used in a performance decision.
Alternatives to consider
Accessories worth planning for
Rear remote hydraulic kitOptional
Required if your Cat 2 tractor lacks one rear remote pair for horizontal extend.
Front ballast / loader ballastOptional
Plan ballast around a 1,041 lb mower and side-shift leverage.
Spare AV17x1245 belt setOptional
KDK63H uses five AV17x1245 belts; stock a full matched set.
Replacement 2.7 lb hammer kitOptional
Wear parts for the 14-hammer KDK rotor.
Freight unloading equipmentOptional
Arrange forks, a loader, or dock access for the roughly 1,168 lb shipment.
Hammers vs Y-blades
Heavy hammer blades
14 hammers · ~2.7 lb each
Best for: Cat 2 side-shift rough mowing where NAM-H is too light
Finish: Coarse mulched / utility finish
KDK is the heavier step up from NAM-H with a 6″ rotor and five-belt drive.
Hammer-only published configuration. Verify replacement hammer and hanger parts against the KDK series, not NAM.
What buyers should know about the KDK63H
Themes are editorial interpretations from manufacturer-published specs and value comparisons (retrieved 2026-08-07). Owner review volume is thin.
- Cat 2 heavy-duty step up. KDK63H is positioned above NAM-H with heavier hammers, a larger rotor, and much higher machine weight.
- One-remote side shift. Hydraulic horizontal extend adds reach while staying simpler than ditch-bank tilt.
- Tip-speed anomaly. The published blade-speed number looks anomalously low and should be verified before relying on it.
- Lift capacity risk. Cat 2 hitch fit, ballast, and unloading plans are critical for a 1,000+ lb machine.
Detailed specifications & features
MechMaxx lists KDK63H at 63″ cutting width, 73″ overall width, 50–75 HP, Category 2 hitch, 1,041 lb machine weight, and 1,168 lb shipping weight.
The KDK package moves to 14 hammers at about 2.7 lb each, a 6″ rotor at 2,082 RPM, 16″ blade swing, 0″–3″ cutting-height range, and five AV17x1245 belts.
63″ KDK Cat 2 side-shift flail that steps up from NAM-H with 2.7 lb hammers, 6″ rotor, and a heavier frame.
Key features
- +50–75 HP Category 2 tractor range
- +1,041 lb machine weight and 1,168 lb shipping weight
- +14 hammers at approximately 2.7 lb each
- +6″ rotor at 2,082 RPM with 16″ blade swing
Manufacturer-published specs
- SKU
- 150205
- Sale price
- $3,399
- Regular price
- $4,999
- Cutting width
- 63 in
- Overall width
- 73 in
- PTO horsepower
- 50–75 HP
- Hitch type
- Category 2
- Machine weight
- 1,041 lb
- Shipping weight
- 1,168 lb
- Cutting height
- 0 – 3 in
- Blade count
- 14 hammer blades
- Hammer weight
- Approximately 2.7 lb each
- Rotor
- 6 in tube at 2,082 RPM
- Blade swing diameter
- 16 in
- Hydraulic extend
- approximately 13–13.4″
- Published tip speed note
- Manufacturer-listed tip speed 31.5 mph (verify)
- Drive belts
- 5× AV17x1245
- Warranty
- 1 year
Specifications sourced from the manufacturer’s product page on August 5, 2026. Specs may change without notice.
FAQ
What tractor size fits the MechMaxx KDK63H?+
MechMaxx lists KDK63H for 50–75 HP Category 2 tractors. Machine weight is 1,041 lb and shipping weight is 1,168 lb.
Is KDK63H Category 1 compatible?+
No. The verified hitch category is Category 2.
How wide is the KDK63H?+
The verified cutting width is 63″ and overall width is 73″.
How much hydraulic extend does KDK63H have?+
Published horizontal extend is approximately 13–13.4″ and requires one rear remote pair.
What blades and belts does KDK63H use?+
Verified specs list 14 hammers at about 2.7 lb each and five AV17x1245 belts.
What rotor specs does KDK63H use?+
Verified specs list a 6″ rotor at 2,082 RPM, 16″ blade swing, and 0″–3″ cutting-height range.
Is the KDK63H blade tip speed really 31.5 mph?+
MechMaxx lists 31.5 mph, but that looks anomalously low. This catalog flags it as manufacturer-listed tip speed 31.5 mph (verify).
KDK63H vs NAM68H, which should I buy?+
KDK63H is the heavier Cat 2 step up with larger hammers and much more weight. NAM68H is the lighter Cat 1 value side-shift model.
What warranty does the KDK63H include?+
MechMaxx publishes a 1-year warranty on machines (separate engine warranties may apply on some powered products). Against Woodmaxx FM models (2-year parts), that shorter term is the main support tradeoff for MechMaxx's lower sticker. Confirm the current machine warranty and claim path on the MechMaxx site before you buy; coverage language is thinner than Woodmaxx's published parts process.
